1080p resolution (1920×1080 pixels) balances detail and file size, capturing sharp footage suitable for identifying faces or objects. Unlike lower resolutions, 1080p ensures critical details aren’t lost, which is vital for forensic analysis. However, it requires adequate lighting and storage, as higher-resolution files demand more bandwidth and memory compared to 720p or SD cameras.

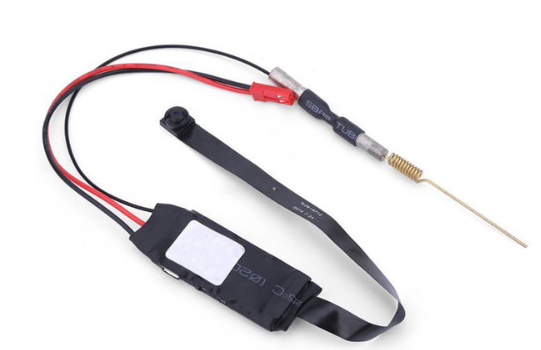

A pinhole camera is a light-proof box with a small hole in one side that lacks a lens. The camera obscure effect occurs when light from a scene enters through the aperture and projects an inverted picture on the opposite side of the box. To make the image, only a small piece of the camera (about the size of a pin) must be exposed to the outside. As a result, this camera can be concealed in other items and remain undetected.The size of a pinhole camera is one of its key advantages. Due to the lack of a lens, these cameras can be made in a variety of sizes, including small and unobtrusive. As a result, pinhole cameras can be camouflaged as pens, headphones, or even eyeglass frames.
| Image Sensor | 2MP CMOS |
| Lens | 3.7mm fixed lens |
| Max. Resolution | 1920×1080 |
| Axis Range | 69.5° (3.7mm), 78.4° (2.8mm) |
| Frame Rate | 1080p@25fps, 1080p@30fps |
| Shutter Speed | 1/25(1/30) s to 1/50,000s |
| WDR | 120dB WDR |
| Other Functions | BLC, DNR, AGC, Sharpness, Contrast, Mirror, Smart IR, Color gain |
| Interface Unit | |
| Audio In / Out | - |
| Alarm Input/ Output | - |
| General Features | |
| Power Supply | 12V DC |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
| Dimension | 32.4 × 32.4 × 22.0mm (1.28"×1.28"×0.87") |
| Weight | 200g (0.44lb.) |
